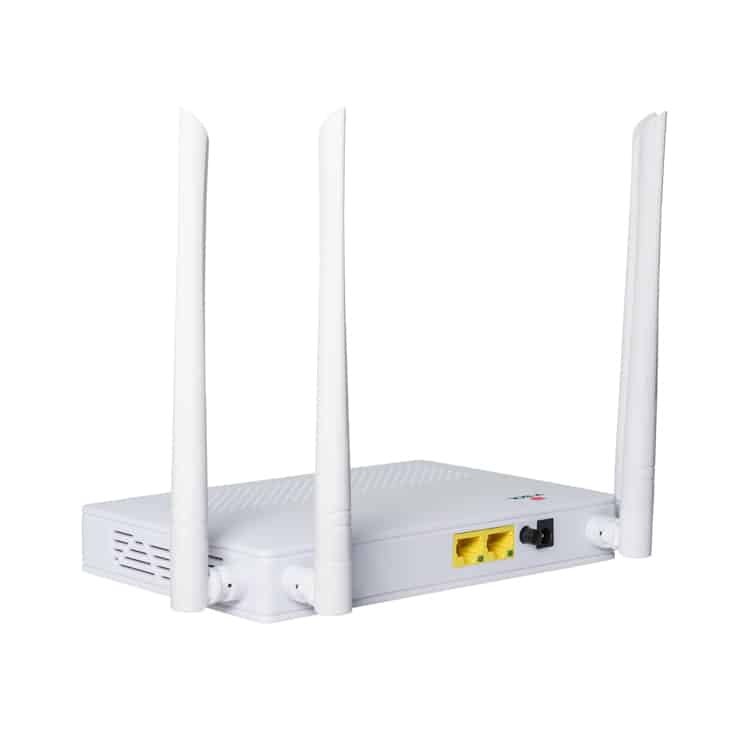

1GE(WAN/LAN1)+1GE(LAN)+Wi-Fi 5 ONU

Category: ELECTRONICS AND APPLIANCES

Brand: Square Pharmaceuticals

Product Code:P-G4Y5LSWY

Seller:

TK:3498

XPON Dual Mode | Mesh Network | AC1200 Dual Gigabit Interfaces Model: V2802DAC

Size:

Buy Now

Call For Order : 01966693555

খুলনার ভিতরে এক থেকে দুই ঘন্টায় ডেলিভারি খুলনার বাইরে দুই-তিন দিনের ডেলিভারি

Delivery Options

Out side all over Bangladesh

Inside Dhaka

Dhaka Sub Area

Delivery Info

Delivery Time : খুলনার ভিতরে ২-৩ ঘণ্টার মধ্যে ডেলিভারি এবং অন্য জায়গায় ২-৩ দিনে ডেলিভারি।

Cash on Delivery Available

Return & Warranty

Warranty Available

Product Description

Dimension	178mm×120mm×30mm(L×W×H)
Net weight	0.31Kg
Operating condition	Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensed)
Storing condition	Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed)
Power adapter	DC 12V,1.0A, external AC-DC power adaptor
Power supply	≤12W
Interface	1GE(WAN/LAN1)+1GE(LAN)+Wi-Fi 5
Indicators	PWR, PON, LOS, WAN, LAN1, LAN2, 2.4G, 5G

○ Interface parameter
PON interface	1XPON port(EPON PX20+ and GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm
User interface	2×GE, Auto-negotiation,RJ45 ports
WLAN interface	Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.4000-2.4835GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support MIMO, rate up to 1.167Gbps Wi-Fi: 2.4GHz( 2T2R ), 5.8GHz( 2T2R ), 5dBi antenna, support: multiple SSID TX power: 11n–22dBm/11ac–24dBm

○ Function Data
Management	OAM/OMCI, Telnet, WEB, TR069 Support full management of ONT functions by VSOL OLT
Internet connection	Support Bridge, Route and Bridge/Route mixed mode
Multicast	Support IGMP v1/v2/v3 Support IGMP Proxy and MLD Proxy Support IGMP Snooping and MLD Snooping
VLAN	Support VLAN tag mode Support VLAN trunk mode Support VLAN translation
Data Service Functions	Full speed non-blocking switching 2K MAC address table 8 full range VLAN ID Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc Support auto polarity detection of Ethernet ports (AUTO MDIX) Integrated IEEE802.1p QoS with four level priority queues Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
Wireless	Support Wireless AP mode Support 802.11 b/g/n/ac Support Multiple SSID Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) Modulation type: DSSS, CCK and OFDM Encoding scheme: BPSK, QPSK, 16QAM and 64QAM, 256QAM Support EasyMesh protocol
QoS	Support 4 queues Support SP and WRR Support 802.1P and DSCP
L3	Support IPv4, IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Static Support Static route Support DHCP Server Support NAT/DMZ/DDNS Support Virtual Server
Security	Support Firewall Support Mac filter Based on MAC or URL Support ACL
